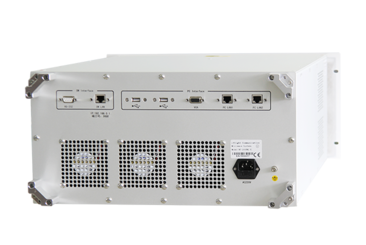

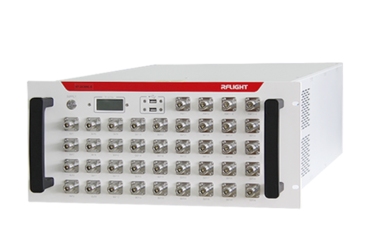

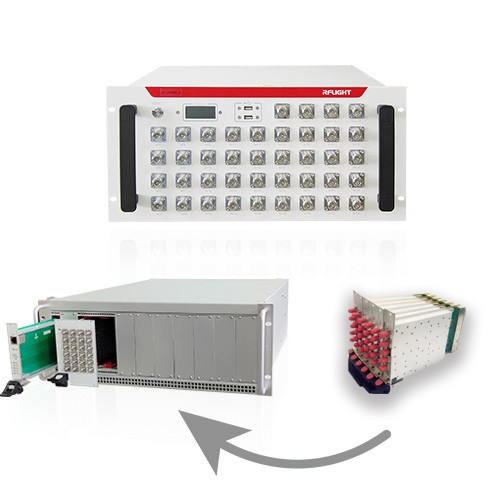

Mechanical Switch Matrix

Mechanical Switch Matrix

Multi-channel wireless communication equipment automation test; 5G array antenna S-parameter and amplitude phase automation test; 5G multi-channel active base station RF index automation test.
Product Description Technical indicators

Product Characteristics

Functional Application

Automated testing of channel wireless communication equipment

Automated S-parameter and amplitude-phase testing of 5G array antennas

5G Multi-Channel Active Base Station RF Metrics Automated Testing

Technical indicators

Technical indicators：

  • Supported ports: 18/36 outputs, expandable to 2×72/2×108/2×144
  • Frequency range: DC-6GHz/18GHz
  • Port VSWR: < 1.4/1.22@3GHz
  • Channel insertion loss: < 12/3dB@3GHz
  • Channel isolation: >80/90dB@3GHz
  • Mechanical switch life: >2~10 million cycles
  • Solid-state switching life: >100 million cycles
  • Average power: 1~150W

New Type

serial numbername (of a thing)model numberKey technical indicators
1Mechanical Switch MatrixNTR-8000frequency：DC-8.5GHz
2Mechanical Switch MatrixNT-2X18NLR-Efrequency：DC-8.5GHz
3NT-2X36NLR-E
4NT-2X18NLC-E
5NT-2X36NLC-E
